2SD2206 Datasheet - Toshiba Semiconductor

2SD2206 Silicon NPN Transistor

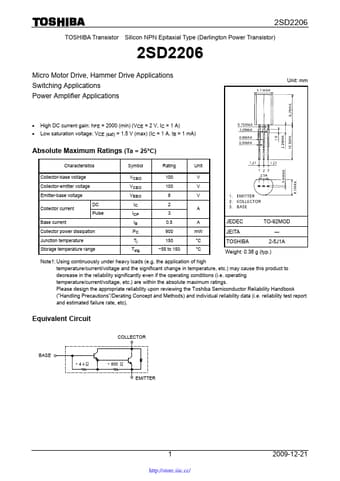

2SD2206 TOSHIBA Transistor Silicon NPN Epitaxial Type (Darlington Power Transistor) 2SD2206 Micro Motor Drive, Hammer Drive Applications Switching Applications Power Amplifier Applications Unit: mm High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A) Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 1 A, IB = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltag.

2SD2206_ToshibaSemiconductor.pdf

Preview of 2SD2206 PDF
2SD2206 Datasheet Preview Page 2 2SD2206 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2206

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

131.45 KB

Description:

Silicon npn transistor.
