2SD2271 - Silicon NPN Transistor

2SD2271 Description

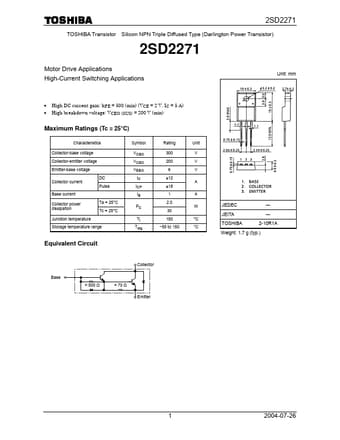

2SD2271 TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington Power Transistor) 2SD2271 Motor Drive Applications High-Current Switching App.

2SD2271 Applications

* High-Current Switching Applications Unit: mm
* High DC current gain: hFE = 500 (min) (VCE = 2 V, IC = 5 A)
* High breakdown voltage: VCEO (SUS) = 200 V (min) Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Coll
