2SD2203 - PNP/NPN Epitaxial Planar Silicon Transistors

2SD2203 Description

Ordering number:EN3250 PNP/NPN Epitaxial Planar Silicon Transistors 2SB1455/2SD2203 80V/7A High-Current Switching Applications .

2SD2203 Features

* Low collector-to-emitter saturation voltage.
* Large current capacity.
* Micaless package facilitating easy mounting. Package Dimensions unit:mm 2041A [2SB1455/2SD2203] ( ) : 2SB1455 Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta =

📥 Download Datasheet

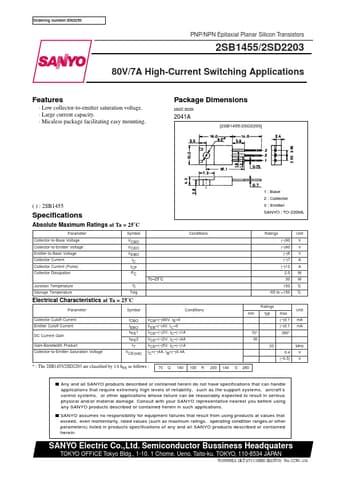

Preview of 2SD2203 PDF
