DL-LS1032 RED LASER DIODE

DL-LS1032 Description

www.DataSheet4U.com RED LASER DIODE DL-LS1032 .

DL-LS1032 Features

* Short wavelength : 635 nm (Typ. )
* High output power : 10 mW CW
* Low threshold current : Ith =40 mA (Typ. )
* Small package :ø5.6mm Package Ver.1 Oct. 2001 Tolerance : ± 0.2 (Unit : mm) 0 ø5.6- 0.025 ø4.4 ø3.55± 0.1 ø1.6 Effective window diameter 1.0min. 1 3 2

DL-LS1032 Applications

* 1.0± 0.1 Line marker,Leveler LD facet Absolute Maximum Ratings (Tc=25°C) Parameter Light Output Reverse Voltage CW Laser PD VR Topr Tstg Symbol Po Ratings 12 2 30 -10 to +50 -40 to +85 V °C °C 2 ø1.4max. 3ø0.45± 0.1 Pin No. 1 2 3 ø2.0 Unit mW Pin Connection 1 3 Operating Temperature Storage Tem

📥 Download Datasheet

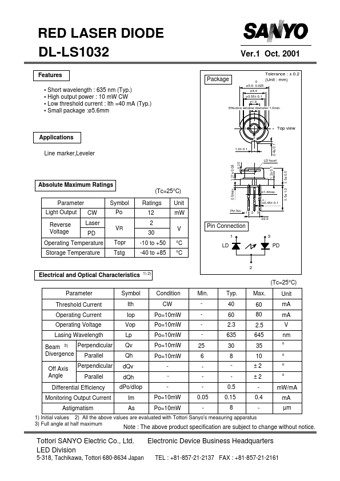

Preview of DL-LS1032 PDF

Datasheet Details

Part number
DL-LS1032
Manufacturer
Sanyo Semicon Device
File Size
46.06 KB
Datasheet
DL-LS1032_SanyoSemiconDevice.pdf
Description
RED LASER DIODE
