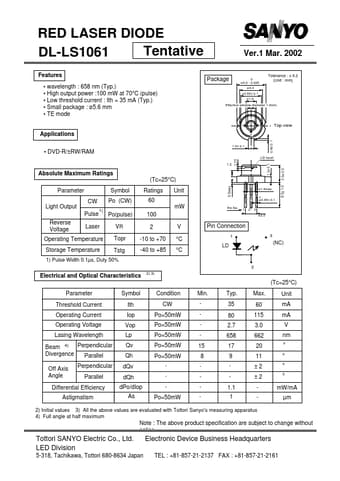

DL-LS1061 Datasheet, Diode, Sanyo Semicon Device

DL-LS1061 Features

• Diode
• wavelength : 658 nm (Typ.)
• High output power :100 mW at 70°C (pulse)
• Low threshold current : Ith = 35 mA (Typ.)
• Small package : ø5.6 mm

PDF File Details

Part number:

DL-LS1061

Manufacturer:

Sanyo Semicon Device

File Size:

45.82kb

Download:

📄 Datasheet

Description:

Red laser diode.

DL-LS1061 Application

• Applications Package Ver.1 Mar. 2002 Tolerance : ± 0.2 (Unit : mm) 0 ø5.6 - 0.025 ø4.4 ø3.55± 0.1 ø1.6 Effective window diameter 1.0min. 1 2 1.0
