DL-LS1035 RED LASER DIODE

DL-LS1035 Description

www.DataSheet4U.com RED LASER DIODE DL-LS1035 Tentative .

DL-LS1035 Features

* Short wavelength : 635 nm (Typ. )
* High output power :30 mW at 40°C
* Low threshold cuttent : lth = 50 mA (Typ. )
* TE mode (Conventional 635nm : TM mode) Package Ver.1 Apr. 2001 Tolerance : ± 0.2 (Unit : mm) 0 ø9.0- 0.03 ø5.35 ø4.75± 0.15 ø2.1 Effective window di

DL-LS1035 Applications

* Bar-code scanner
* Line marker 1.0± 0.1 LD facet Absolute Maximum Ratings (Tc=25°C) Parameter Light Output Reverse Voltage CW Laser PD VR Topr Tstg Symbol Po Ratings 35 2 30 -10 to +40 -40 to +85 V °C °C 2 ø1.4max. 3ø0.45± 0.1 Pin No. 1 2 3 ø2.54 Unit mW Pin Connection 1 3 Ope

📥 Download Datasheet

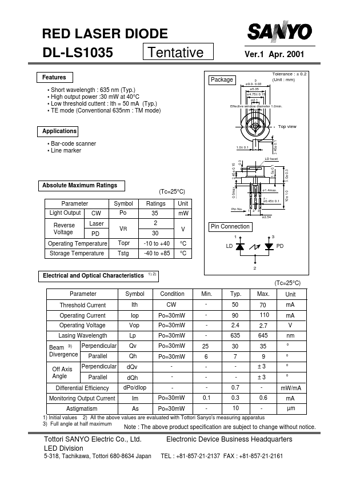

Preview of DL-LS1035 PDF
datasheet Preview Page 2

Datasheet Details

Part number
DL-LS1035
Manufacturer
Sanyo Semicon Device
File Size
60.43 KB
Datasheet
DL-LS1035_SanyoSemiconDevice.pdf
Description
RED LASER DIODE
