DL-LS1018 Datasheet - Sanyo Semicon Device

DL-LS1018, RED LASER DIODE

www.DataSheet4U.com RED LASER DIODE DL-LS1018 Tentative .

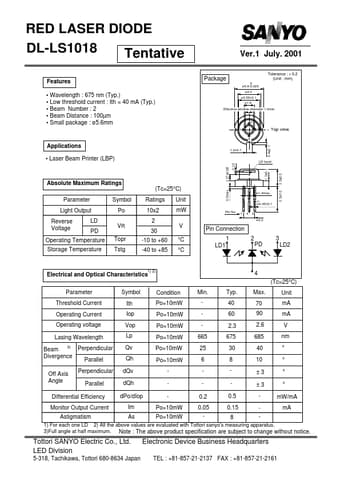

datasheet Preview Page 1 from Datasheet4u.com

DL-LS1018_SanyoSemiconDevice.pdf

DL-LS1018 Datasheet Preview — Preview of DL-LS1018 PDF

Datasheet Details

Part number:

DL-LS1018

Manufacturer:

Sanyo Semicon Device

File Size:

49.70 KB

Description:

RED LASER DIODE

Features

* Wavelength : 675 nm (Typ. )
* Low threshold current : Ith = 40 mA (Typ. )
* Beam Number : 2
* Beam Distance : 100µm
* Small package : ø5.6mm Package Ver.1 July. 2001 Tolerance : ± 0.2 (Unit : mm) 0 ø5.6-0.025 ø4.4 ø3.55±0.1 ø1.6 Effective window diameter 1.0m

Applications

* 1.0±0.1
* Laser Beam Printer (LBP) LD facet Absolute Maximum Ratings (Tc=25°C) ø1.4max. Parameter Light Output Reverse Voltage LD PD Symbol Po VR Topr Tstg Ratings 10x2 2 30 -10 to +60 -40 to +85 Unit mW V °C °C LD1 Pin No. 1 4 3 3ø0.45±0.1 ø2.0 Pin Connection 1 2 PD 3 LD2 Operati
