DL-LS1034

RED LASER DIODE

DL-LS1034 Features

* Short wavelength : 635 nm (Typ.)

* High output power : 20 mW CW

* Low threshold current : Ith = 40 mA (Typ.)

* Low operating voltage : Vop = 2.3 V (Typ.) Package Ver.1 Oct. 2001 Tolerance : ± 0.2 (Unit : mm) 0 ø9.0- 0.03 ø5.35 ø4.75± 0.15 ø2.1 Effective window di

DL-LS1034 Datasheet (58.03 KB)

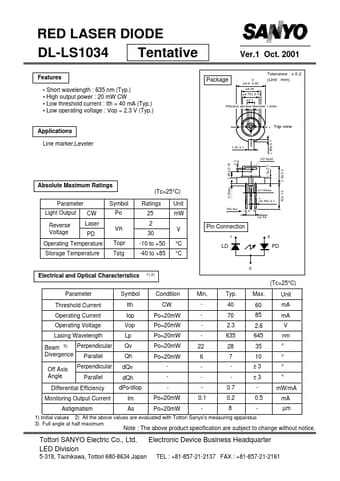

Preview of DL-LS1034 PDF

Datasheet Details

Part number:

DL-LS1034

Manufacturer:

Sanyo Semicon Device

File Size:

58.03 KB

Description:

Red laser diode.
