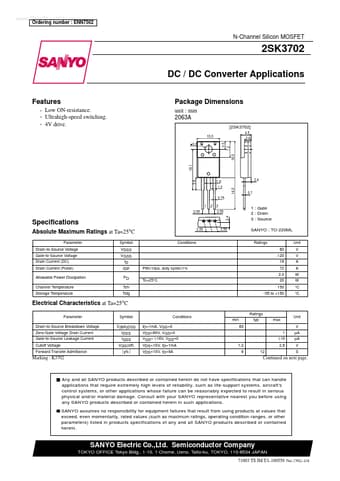

Ordering number : ENN7502
2SK3702
N-Channel Silicon MOSFET
2SK3702
DC / DC Converter Applications
Features
• • •
Package Dimensions
unit : mm 2063A
[2SK3702]
10.0 3.2
3.5 7.2
Low ON-resistance. Ultrahigh-speed switching. 4V drive.
4.5 2.8
18.1
16.0
5.6
14.0
1.6 1.2 0.75
2.4 0.7
2.55
1 2 3 2.55
2.4
Specifications
Absolute Maximum Ratings at Ta=25°C
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg PW≤10µs, duty cycle≤1% Tc=25°C
w w
1 : Gate 2 : Drain 3 : Source SANYO : TO-220ML
Ratings 60 ± 20 18 72 2.0 20 150 --55 to +150 Unit V V A A W W °C °C
2.55
Conditions
