LC72720M, Single-Chip RDS Signal-Processing System LSI

Ordering number : EN *5602 CMOS LSI LC72720, 72720M Single-Chip RDS Signal-Processing System LSI Preliminary Overview The LC72720 and LC72720M a.

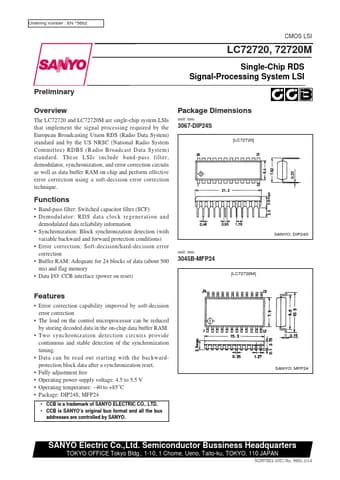

datasheet Preview Page 1 from Datasheet4u.com

LC72720M_SanyoSemiconDevice.pdf

LC72720M Datasheet Preview — Preview of LC72720M PDF

Datasheet Details

Part number:

LC72720M

Manufacturer:

Sanyo Semicon Device

File Size:

235.28 KB

Description:

Single-Chip RDS Signal-Processing System LSI

Features

* Error correction capability improved by soft-decision error correction
* The load on the control microprocessor can be reduced by storing decoded data in the on-chip data buffer RAM.
* Two synchronization detection circuits provide continuous and stable detection of the syn

Applications

* No. 5602-3/14 LC72720, 72720M Specifications Absolute Maximum Ratings at Ta = 25°C, Vssd = Vssa = 0 V Parameter Maximum supply voltage Symbol VDD max VIN1 max Maximum input voltage VIN2 max VIN3 max VO1 max Maximum output voltage VO2 max VO3 max IO1 max Maximum output current IO2 max IO3 max All
