LC72722PMS - Single-Chip RDS Signal-Processing System IC

Datasheet Summary

Features

  • Error correction capability improved by soft-decision error correction.
  • The load on the control microprocessor can be reduced by storing decoded data in the on-chip data buffer RAM.
  • Two synchronization detection circuits provide continuous and stable detection of the synchronization.
  • Data can be read out starting with the backward-protection block data after a synchronization reset.
  • Fully adjustment free Specifications.
  • Operating power-s.

📥 Download Datasheet

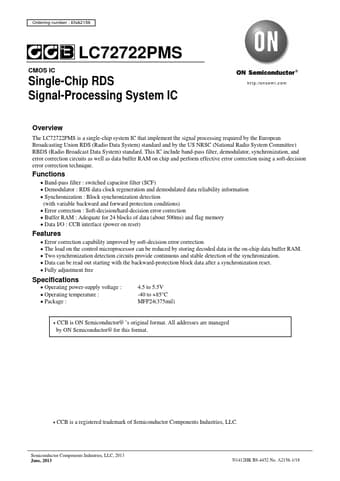

Datasheet preview – LC72722PMS

Datasheet Details

Part number LC72722PMS
Manufacturer ON Semiconductor
File Size 176.81 KB
Description Single-Chip RDS Signal-Processing System IC
Datasheet download datasheet LC72722PMS Datasheet
