LC72720YVS, Single-Chip RDS Signal-Processing System IC

Ordering number : ENA2155 LC72720YVS CMOS IC Single-Chip RDS Signal-Processing System IC http://onsemi.com Overview The LC72720YVS is a single-chip.

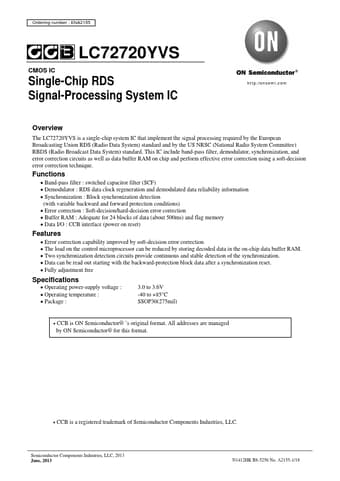

datasheet Preview Page 1 from Datasheet4u.com

LC72720YVS-ONSemiconductor.pdf

LC72720YVS Datasheet Preview — Preview of LC72720YVS PDF

Datasheet Details

Part number:

LC72720YVS

Manufacturer:

ON Semiconductor ↗

File Size:

176.10 KB

Description:

Single-Chip RDS Signal-Processing System IC

Features

* Error correction capability improved by soft-decision error correction
* The load on the control microprocessor can be reduced by storing decoded data in the on-chip data buffer RAM.
* Two synchronization detection circuits provide continuous and stable detection of the syn

Applications

* Pin 4, 8, 12, 19, 23, 27 are NC (NO CONNECT) Pins. No. A2155-6/18 LC72720YVS CCB output data format 1. Each block of output data consists of 32 bits (4 bytes), of which 2 bytes are RDS data and 2 bytes are flag data. 2. Any number of 32-bits output data blocks can be output consecutively. 3. When
