LC72725KVS, RDS(RBDS) Demodulation IC

Pin No.

3 Pin Name VREF I/O Output Function Reference voltage output (VDDa/2) 4 MPXIN Input Baseband (multiplexed) signal input 7 FLOUT Output Subcarrier output (filter output) 8 CIN Input Subcarrier input (comparator input) 5 VDDa - Analog system power supply (+3V) 6 VSSa - An

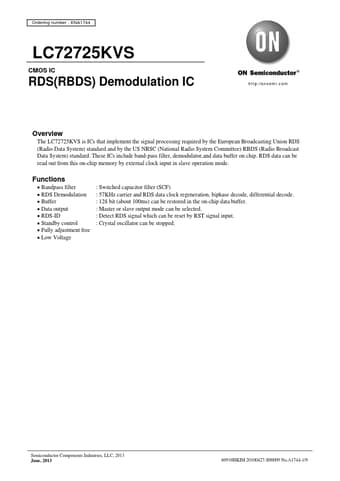

Ordering number : ENA1744 LC72725KVS CMOS IC RDS(RBDS) Demodulation IC http://onsemi.com Overview The LC72725KVS is ICs that implement the signal processing required by the European Broadcasting Union RDS (Radio Data System) standard and by the US NRSC (National Radio System Committee) RBDS (Radio Broadcast Data System) standard.

These ICs include band-pass filter, demodulator,and data buffer on chip.

RDS data can be read out from this on-chip memory by external clock input in slave operation

LC72725KVS Features

* P
