LC72725KV RDS(RBDS) Demodulation IC

Pin No. 3 Pin Name VREF I/O Output Function Reference voltage output (Vdda/2) 4 MPXIN Input Baseband (multiplexed) signal input 7 FLOUT Output Subcarrier output (filter output) 8 CIN Input Subcarrier input (comparator input) 5 VDDa - Analog system power supply (+3V) 6 VSSa - An.

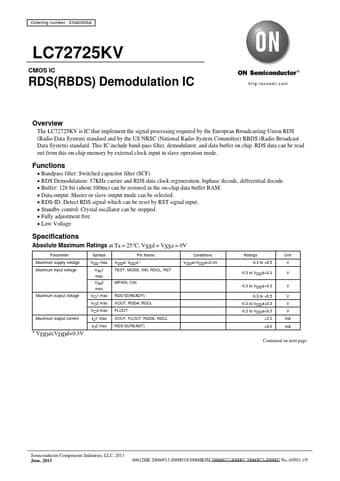

Ordering number : ENA0503A LC72725KV CMOS IC RDS(RBDS) Demodulation IC http://onsemi.com Overview The LC72725KV is IC that implement the signal processing required by the European Broadcasting Union RDS (Radio Data System) standard and by the US NRSC (National Radio System Committee) RBDS (Radio Broadcast Data System) standard. This IC include band-pass filter, demodulator, and data buffer on chip. RDS data can be read out from this on-chip memory by external clock input in slave operation mod.

LC72725KV Features
