A1435

2SA1435

A1435 Features

* Adoption of MBIT process.

* High DC current gain (hFE=500 to 1200).

* Large current capacity.

* Low colletor-to-emitter saturation voltage (VCE(sat)≤0.5V max).

* High VEBO (VEBO≥15V). Package Dimensions unit:mm 2003A [2SA1435] Specifications Absolute Maximum Ratings at Ta =

A1435 Datasheet (79.48 KB)

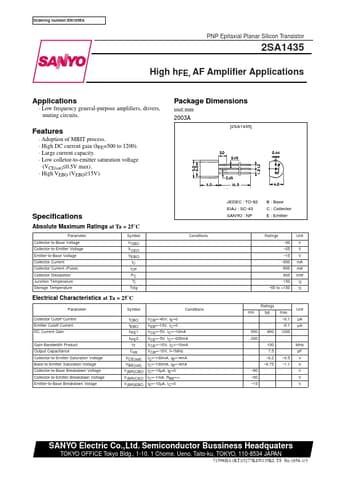

Preview of A1435 PDF

Datasheet Details

Part number:

A1435

Manufacturer:

Sanyo

File Size:

79.48 KB

Description:

2sa1435.
Ordering number:EN1856A PNP Epitaxial Planar Silicon Transistor 2SA1435 High hFE, AF Amplifier Applications Applications
* Low frequency general.
