A1432 2SA1432

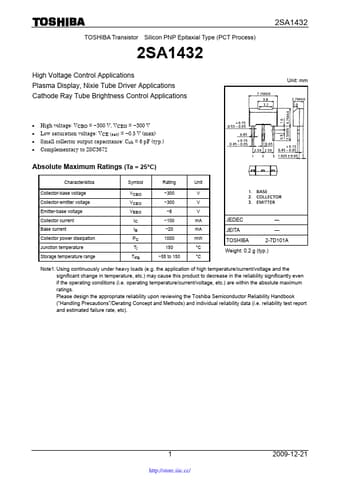

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1432 High Voltage Control Applications Plasma Display, Nixie Tube Driver Applications Cathode Ray Tube Brightness Control Applications 2SA1432 Unit: mm High voltage: VCBO = 300 V, VCEO = 300 V Low saturation voltage: VCE (sat) = 0.5 V (max) Small collector output capacitance: Cob = 6 pF (typ.) Complementary to 2SC3672 Absolute Maximum Ratings (Ta = 25°C) Character.

A1432 Features

* BILITY FOR CUSTOMERS’ PRODUCT DESIGN OR APPLICATIONS.

* Product is intended for use in general electronics applications (e.g., computers, personal equipment, office equipment, measuring equipment, industrial robots and home electronics appliances) or for specific applications as expressly st
