C3951 - 2SC3951

C3951 Description

Ordering number:EN2435A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1536/2SC3951 High-Definition CRT Display Video Output Applications Applicati.

C3951 Features

* High fT : fT=600MHz.
* High breakdown voltage : VCEO=70Vmin.
* Small reverse transfer capacitance and excellent high -frequency characteristic : Cre=1.9pF/NPN, 2.4pF/PNP.
* Complementary PNP and NPN types.
* Adoption of FBET process.
* Micaless type. ( ) : 2SA1536 Specific

C3951 Applications

* Applications

📥 Download Datasheet

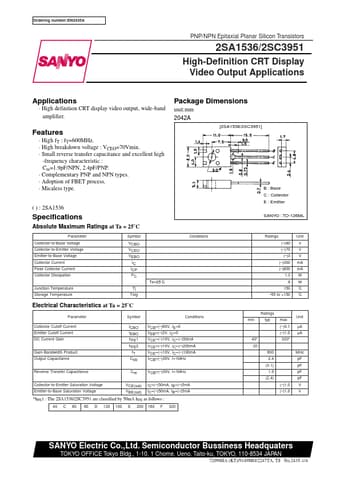

Preview of C3951 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3951
Manufacturer
Sanyo
File Size
113.82 KB
Datasheet
C3951-Sanyo.pdf
Description
2SC3951
