C3955 - 2SC3955

C3955 Description

Ordering number:EN2439A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1540/2SC3955 High-Definition CRT Display Video Output Applications Applicati.

C3955 Features

* High gain-bandwidth product : fT=300MHz.
* High breakdown voltage : VCEO=200Vmin.
* Small reverse transfer capacitance and excellent high frequency characteristics : Cre=1.5pF/NPN, 1.8pF/ PNP.
* Complementary PNP and NPN types.
* Adoption of FBET process.
* Micaless type :

C3955 Applications

* Applications

📥 Download Datasheet

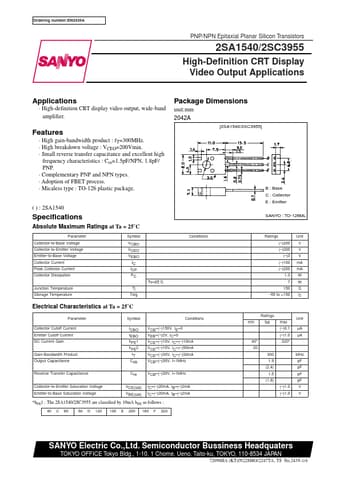

Preview of C3955 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3955
Manufacturer
Sanyo
File Size
120.18 KB
Datasheet
C3955-Sanyo.pdf
Description
2SC3955
