C3956 - 2SC3956

C3956 Description

Ordering number:EN2440A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1541/2SC3956 High-Definition CRT Display Video Output Applications Applicati.

C3956 Features

* High gain-bandwidth product : fT=300MHz.
* High breakdown voltage : VCEO=200Vmin.
* Small reverse transfer capacitance and excellent high frequency characteristics : Cre=2.2pF/NPN, 2.7pF/ PNP.
* Complementary PNP and NPN types.
* Adoption of FBET process.
* Micaless type :

C3956 Applications

* Applications

📥 Download Datasheet

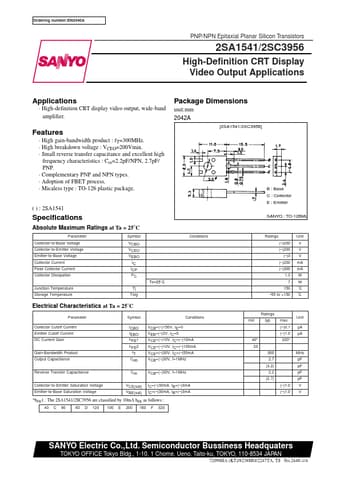

Preview of C3956 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3956
Manufacturer
Sanyo
File Size
108.09 KB
Datasheet
C3956-Sanyo.pdf
Description
2SC3956
