LA1266 Datasheet (Sanyo) - AM/FM Tuner System Of Electronic Tuning Type Monolithic Linear

LA1266, AM/FM Tuner System Of Electronic Tuning Type Monolithic Linear

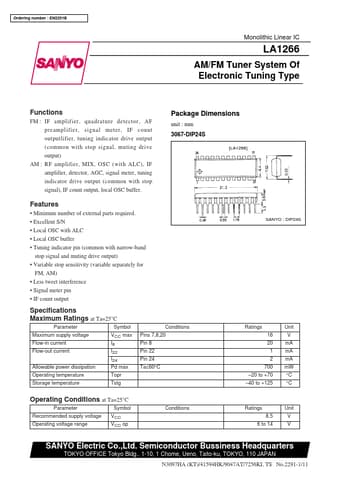

Ordering number : EN2291B Monolithic Linear IC LA1266 AM/FM Tuner System Of Electronic Tuning Type Functions FM : IF amplifier, quadrature detector, AF preamplifier, signal meter, IF count outputlifier, tuning indicator drive output (common with stop signal, muting drive output) AM : RF amplifier, MIX, OSC (with ALC), IF amplifier, detector, AGC, signal meter, tuning indicator drive output (common with stop signal), IF count output, local OSC buffer.

Package Dimensions unit : mm 3067-DIP24S [

LA1266 Features

* Minimum number of external parts required.

* Excellent S/N

* Local OSC with ALC

* Local OSC buffer

* Tuning indicator pin (common with narrow-band stop signal and muting drive output)

* Variable stop sensitivity (variable separately for FM, AM)
