LA7841 Datasheet - Sanyo

LA7841 - Vertical Deflection

Ordering number: EN5148B Monolithic Linear IC LA7841 Vertical Deflection Output Circuit Overview The LA7841 is a vertical deflection output IC for TVs and CRT displays with excellent image quality that use a BUS control system signal processing IC.

This IC can drive the direct (even including a DC component) deflection yoke with the sawtooth wave output from the BUS control system signal processing IC.

When used in conjunction with Sanyo’s LA7615 series of BUS control system signal processing

LA7841 Features

* . Low power dissipation due to built-in pump-up circuit . Vertical output circuit . Thermal protection circuit built in . Excellent crossover characteristics . DC coupling possible 1 1.38 2.54 0.6 7 1.0 0.6 1.2 SANYO : SIP7H 1.0 min 5.8 Specifications Maximum Ratings at Ta = 25 °C Parameter M

LA7841_SanyoSemiconDevice.pdf

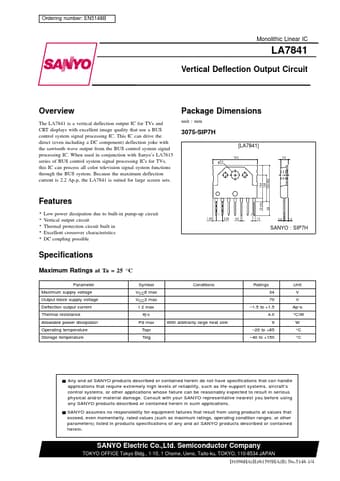

Preview of LA7841 PDF
LA7841 Datasheet Preview Page 2 LA7841 Datasheet Preview Page 3

Datasheet Details

Part number:

LA7841

Manufacturer:

Sanyo

File Size:

47.00 KB

Description:

Vertical deflection.
