LA7845N Datasheet - Sanyo

LA7845N Vertical Deflection

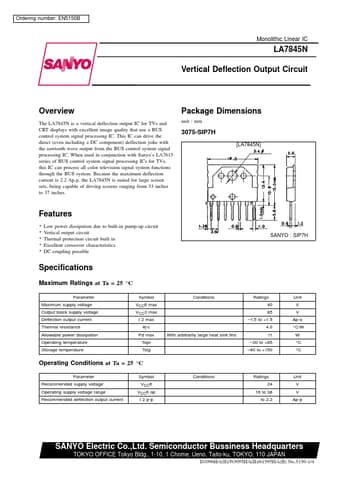

Ordering number: EN5150B Monolithic Linear IC LA7845N Vertical Deflection Output Circuit Overview The LA7845N is a vertical deflection output IC for TVs and CRT displays with excellent image quality that use a BUS control system signal processing IC. This IC can drive the direct (even including a DC component) deflection yoke with the sawtooth wave output from the BUS control system signal processing IC. When used in conjunction with Sanyo’s LA7615 series of BUS control system signal processi.

LA7845N Features

* . Low power dissipation due to built-in pump-up circuit . Vertical output circuit . Thermal protection circuit built in . Excellent crossover characteristics . DC coupling possible Specifications Maximum Ratings at Ta = 25 °C Parameter Maximum supply voltage Output block supply voltage Deflection o

LA7845N Datasheet (54.36 KB)
