LA7845 Datasheet - Sanyo

LA7845 Vertical Deflection

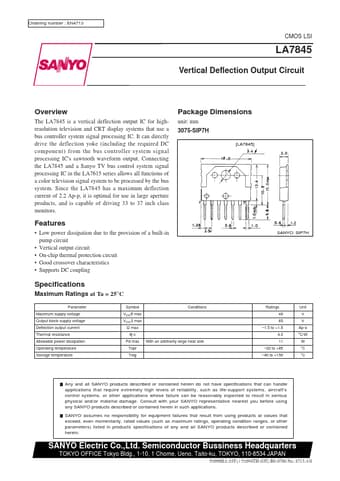

Ordering number : EN4713 CMOS LSI LA7845 Vertical Deflection Output Circuit Overview The LA7845 is a vertical deflection output IC for highresolution television and CRT display systems that use a bus controller system signal processing IC. It can directly drive the deflection yoke (including the required DC component) from the bus controller system signal processing IC's sawtooth waveform output. Connecting the LA7845 and a Sanyo TV bus control system signal processing IC in the LA7615 series.

LA7845 Features

* Low power dissipation due to the provision of a built-in pump circuit

* Vertical output circuit

* On-chip thermal protection circuit

* Good crossover characteristics

* Supports DC coupling SANYO: SIP7H www.DataSheet.net/ Specifications Maximum Ratings at T

LA7845 Datasheet (110.09 KB)
