LA7846N

Vertical Deflection

LA7846N Features

* . Low power dissipation due to built-in pump-up circuit . Vertical output circuit . Thermal protection circuit built in . Excellent crossover characteristics . DC coupling possible Specifications Maximum Ratings at Ta = 25 °C Parameter Maximum supply voltage Output block supply voltage Deflection o

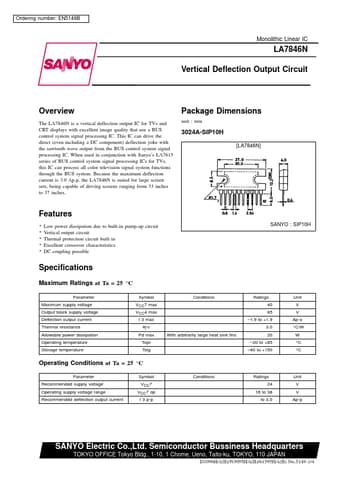

LA7846N Datasheet (54.20 KB)

Preview of LA7846N PDF

Datasheet Details

Part number:

LA7846N

Manufacturer:

Sanyo

File Size:

54.20 KB

Description:

Vertical deflection.
Ordering number: EN5149B Monolithic Linear IC LA7846N Vertical Deflection Output Circuit Overview The LA7846N is a vertical deflection output IC fo.
