LC33832P Datasheet - Sanyo

LC33832P - 256 K (32768 words X 8 bits) Pseudo-SRAM

Ordering number : EN4430C CMOS LSI LC33832P, S, M, PL, SL, ML-70/80/10 256 K (32768 words × 8 bits) Pseudo-SRAM Overview The LC33832 series is composed of pseudo static RAM that operates on a single 5 V power supply and is organized as 32768 words × 8 bits.

By using memory cells each composed of a single transistor and capacitor, together with peripheral CMOS circuitry, this series achieves ease of use with high density, high speed, and low power dissipation.

The LC33832 series can easily acc

LC33832P Features

* pin compatibility with 256 K static RAM (the LC36256A series), and available packages are the standard 28-pin DIP with widths of 600 mil or 300 mil, and the SOP with a width of 450 mil. CE-only refresh can be accomplished by selecting address 256 (A0 to A7) within 4 ms. Package Dimensions unit: mm

LC33832P_SanyoSemiconDevice.pdf

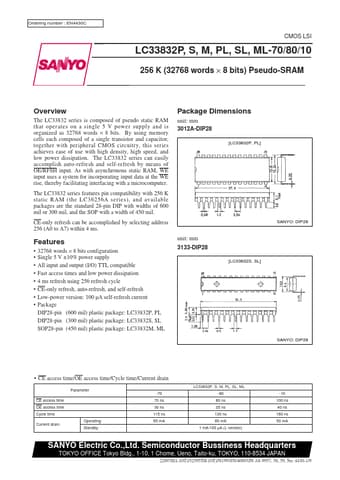

Preview of LC33832P PDF
LC33832P Datasheet Preview Page 2 LC33832P Datasheet Preview Page 3

Datasheet Details

Part number:

LC33832P

Manufacturer:

Sanyo

File Size:

128.50 KB

Description:

256 k (32768 words x 8 bits) pseudo-sram.
