LC33832PL - 256 K (32768 words X 8 bits) Pseudo-SRAM

Product Overview

Sanyo

📥 Download Datasheet

LC33832PL 256 K (32768 words X 8 bits) Pseudo-SRAM by Sanyo - Datasheet Preview — Datasheet preview – LC33832PL

Datasheet Details

Part number	LC33832PL
Manufacturer	Sanyo
File Size	128.50 KB
Description	256 K (32768 words X 8 bits) Pseudo-SRAM
Datasheet	LC33832PL Datasheet

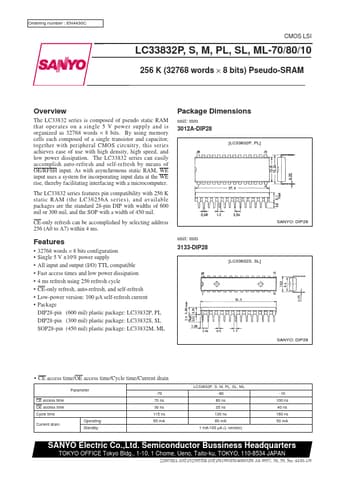

Additional preview pages of the LC33832PL datasheet.

Product details

Features

pin compatibility with 256 K static RAM (the LC36256A series), and available packages are the standard 28-pin DIP with widths of 600 mil or 300 mil, and the SOP with a width of 450 mil. CE-only refresh can be accomplished by selecting address 256 (A0 to A7) within 4 ms. Package Dimensions unit: mm 3012A-DIP28 [LC33832P, PL] SANYO: DIP28 Features.
32768 words × 8 bits configuration Single 5 V ±10% power supply All i.
