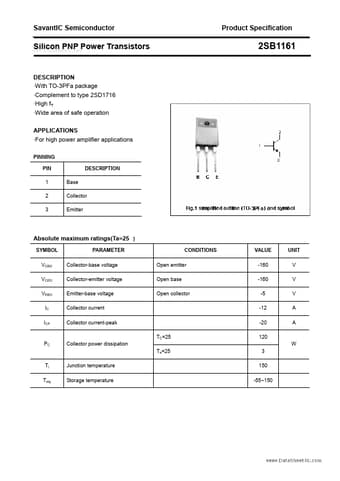

2SB1161 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SB1161

Manufacturer:

SavantIC

File Size:

147.95kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PFa package

Complement to type 2SD1716

High fT

Wide area of safe operation APPLICATIONS

2SB1161 Application

• Applications
• For high power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) S
