2SB1402 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SB1402

Manufacturer:

SavantIC

File Size:

156.28kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220Fa package
  • High DC current gain
  • Low collector saturation voltage
  • DARLINGTON APPLICATIO

  • Datasheet Preview: 2SB1402 📥 Download PDF (156.28kb)

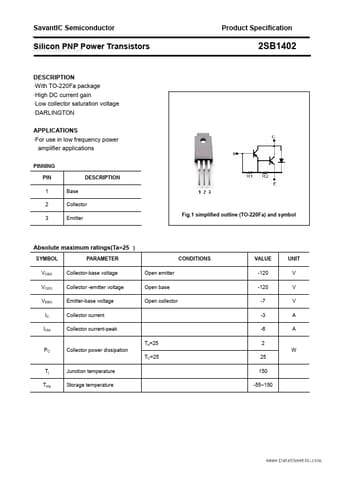

    Page 2 of 2SB1402 Page 3 of 2SB1402

    2SB1402 Application

    • Applications
    • For use in low frequency power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-22
