2SB1403 - SILICON POWER TRANSISTOR

2SB1403 Description

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SB1403 .
With TO-220Fa package. High DC current gain. Low collector saturation voltage. DARLINGTON APPLICATIONS. For use in low frequency.

📥 Download Datasheet

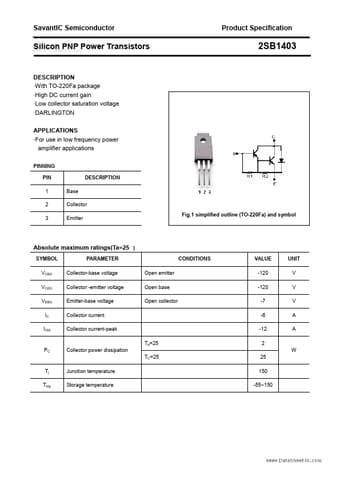

Preview of 2SB1403 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1403
Manufacturer
SavantIC
File Size
156.52 KB
Datasheet
2SB1403_SavantIC.pdf
Description
SILICON POWER TRANSISTOR
