2SC1567 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC1567

Datasheet Details

Part number 2SC1567
Manufacturer SavantIC
File Size 132.15 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1567 Datasheet
Additional preview pages of the 2SC1567 datasheet.

Product details

Description

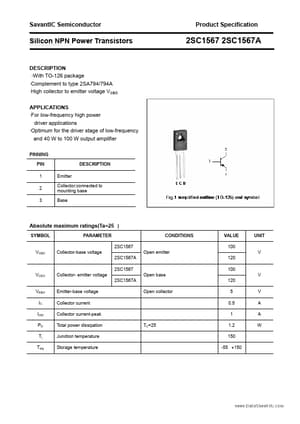

With TO-126 package Complement to type 2SA794/794A High collector to emitter voltage VCEO APPLICATIONS For low-frequency high power driver applications Optimum for the driver stage of low-frequency and 40 W to 100 W output amplifier PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC1567 VCBO Collector-base voltage 2SC1567A 2SC1567 VCEO Collector- emitter voltage 2SC1567A VEBO IC ICM PD Tj
