2SC2706 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC2706

Manufacturer:

SavantIC

File Size:

148.86kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-3P(I) package
  • High power dissipation APPLICATIONS
  • For audio power amplifier and general purpose ap

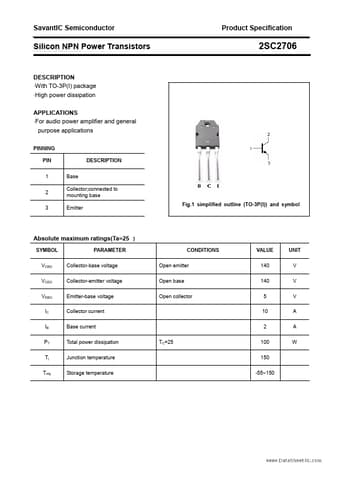

  • Datasheet Preview: 2SC2706 📥 Download PDF (148.86kb)
    Page 2 of 2SC2706 Page 3 of 2SC2706

    2SC2706 Application

    • Applications
    • For audio power amplifier and general purpose applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter
