2SC2794 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-126 package Low collector saturation voltage APPLICATIONS For medium power linear and switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Col

SavantIC

📥 Download Datasheet

Datasheet Details

Part number	2SC2794
Manufacturer	SavantIC
File Size	126.81 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC2794 Datasheet
Additional preview pages of the 2SC2794 datasheet.

📁 Similar Datasheet

2SC2794 - NPN Transistor (INCHANGE)
2SC2790 - Silicon NPN Transistor (Toshiba)
2SC2791 - NPN Transistor (INCHANGE)
2SC2791 - Silicon NPN Transistor (Toshiba)
2SC2792 - Silicon NPN Transistor (Toshiba)
2SC2793 - NPN Transistor (INCHANGE)
2SC2793 - Silicon NPN Transistor (Toshiba)
2SC2798 - NPN EPITAXIAL PLANAR TYPE TRANSISTOR (Mitsubishi)
2SC2703 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
2SC2703 - NPN Transistor (JCET)

Other Datasheets by SavantIC

2SC2791 - SILICON POWER TRANSISTOR
2SC2792 - SILICON POWER TRANSISTOR
2SC2793 - SILICON POWER TRANSISTOR
2SC2706 - SILICON POWER TRANSISTOR
2SC2738 - SILICON POWER TRANSISTOR
2SC2739 - SILICON POWER TRANSISTOR
2SC2740 - SILICON POWER TRANSISTOR
2SC2749 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

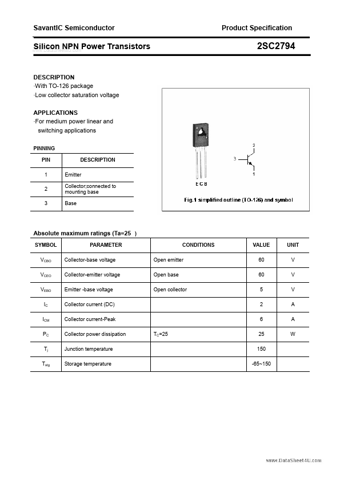

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC2794 DESCRIPTION ·With TO-126 package ·Low collector saturation voltage APPLICATIONS ·For medium power linear and switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter -base voltage Collector current (DC) Collector current-Peak Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 60 60 5 2 6 25 150 -65~150 UNIT V V V A A W SavantIC Semiconductor www.DataSheet4U.
