2SC5417

SILICON POWER TRANSISTOR

SavantIC

📥 Download PDF (265.82 KB)

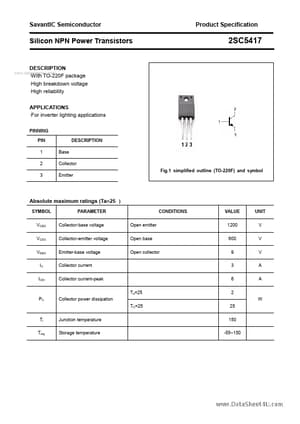

2SC5417 Datasheet Preview Page 1 — Preview of 2SC5417 Datasheet

Datasheet Details

Part number:

2SC5417

Manufacturer:

SavantIC

File Size:

265.82 KB

Download:

📄 Download 2SC5417 Datasheet PDF

Description:

Silicon power transistor.
SavantIC Semiconductor Product Specification Silicon NPN Power Transistors 2SC5417 www.datasheet.
*With TO-220F package *High breakdown voltage *High reliability APPLICATIONS *For inverter lighting .

✔ 2SC5417 Application

For inverter lighting applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-22
