2SD1063 Datasheet - SavantIC

2SD1063 SILICON POWER TRANSISTOR

*With TO-3PN package www.datasheet4u.com *Wide area of safe operation *Low collector saturation voltage *Complement to type 2SB827 APPLICATIONS *Universal high current switching as solenoid driving,high speed inverter and converter. PINNING PIN 1 2 3 Base Collector;connected to m.

2SD1063_SavantIC.pdf

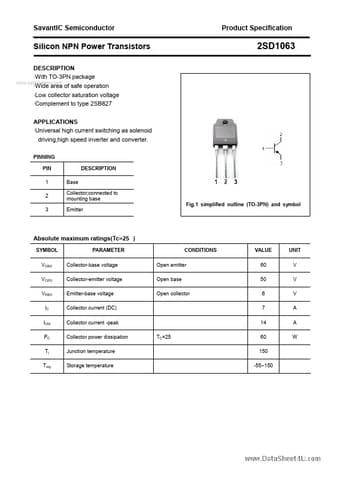

Preview of 2SD1063 PDF
2SD1063 Datasheet Preview Page 2 2SD1063 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1063

Manufacturer:

SavantIC

File Size:

221.45 KB

Description:

Silicon power transistor.
