2SD1594 SILICON POWER TRANSISTOR

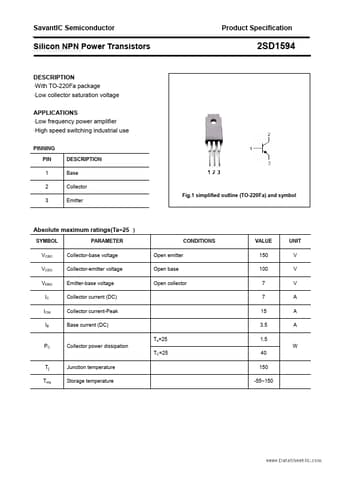

*With TO-220Fa package *Low collector saturation voltage APPLICATIONS *Low frequency power amplifier *High speed switching industrial use PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO .
