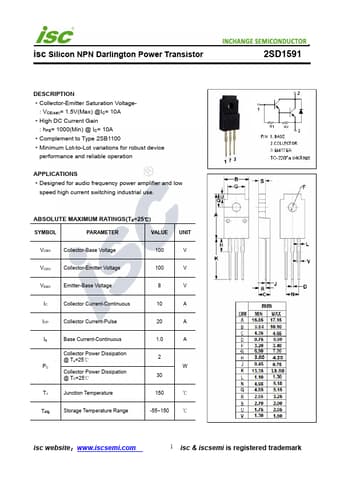

2SD1591 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD1591

Manufacturer:

INCHANGE

File Size:

212.07kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Saturation Voltage- : VCE(sat)= 1.5V(Max) @IC= 10A

High DC Current Gain : hFE= 1000(Min) @ IC= 10

2SD1591 Application

• Applications
• Designed for audio frequency power amplifier and low speed high current switching industrial use. ABSOLUTE MAXIMUM RATINGS(Ta
