2SD1594 - NPN Transistor

2SD1594 Description

isc Silicon NPN Power Transistor .
Good Linearity of hFE. Collector-Emitter Breakdown Voltage : V(BR)CEO= 100V(Min). Low Collector Saturation Voltage. Minimum Lot-to-Lo.

2SD1594 Applications

* Designed for high speed switching industrial use. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 7 A ICM Collector Current-Pea

📥 Download Datasheet

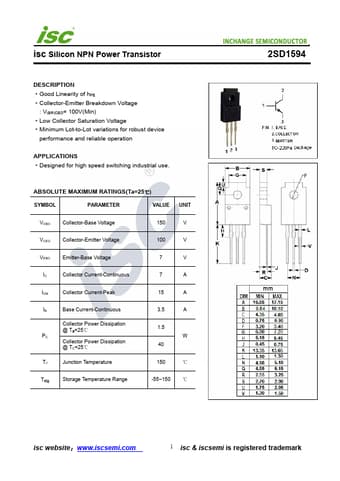

Preview of 2SD1594 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1594
Manufacturer
INCHANGE
File Size
211.79 KB
Datasheet
2SD1594-INCHANGE.pdf
Description
NPN Transistor
