2SD1885 Datasheet - SavantIC

2SD1885 SILICON POWER TRANSISTOR

*With TO-3PML package *High breakdown voltage *High reliability *High speed APPLICATIONS *Color TV horizontal deflection output. *Color display horizontal deflection output. PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Ab.

2SD1885_SavantIC.pdf

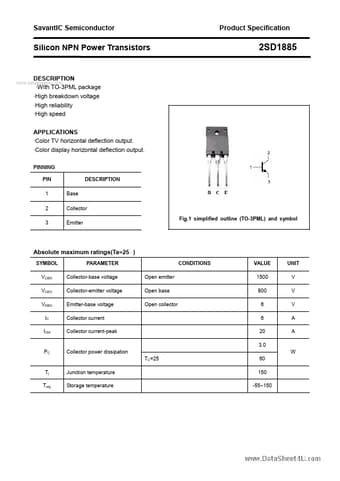

Preview of 2SD1885 PDF
2SD1885 Datasheet Preview Page 2 2SD1885 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1885

Manufacturer:

SavantIC

File Size:

236.24 KB

Description:

Silicon power transistor.
