2SD1884 NPN Transistor

INCHANGE

Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. High Reliability. Minimum Lot-to-Lot variations for robust device.

📥 Download Datasheet

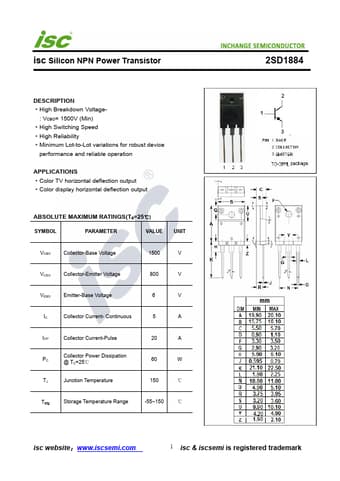

2SD1884 Datasheet Preview — Preview of 2SD1884 PDF

Datasheet Specifications

Part number: 2SD1884
Manufacturer: INCHANGE
File Size: 212.72 KB
Datasheet: 2SD1884-INCHANGE.pdf
Description: NPN Transistor

Applications

* Color TV horizontal deflection output
* Color display horizontal deflection output ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Conti
