2SD2499 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SD2499

Manufacturer:

SavantIC

File Size:

316.96kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3P(H)IS package

High voltage;high speed

Low saturation voltage

Bult-in damper diode APPLI

2SD2499 Application

• Applications

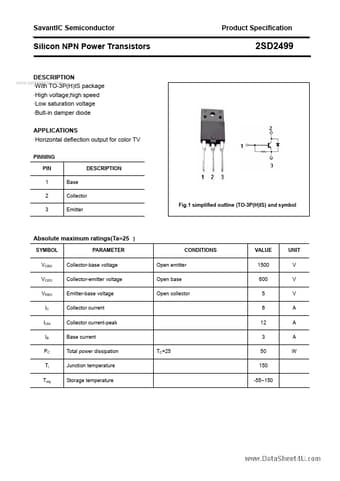

• Horizontal deflection output for color TV PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and s
