2SD2493 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD2493

Manufacturer:

INCHANGE

File Size:

222.22kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= 110V(Min)
  • High DC Current Gain- : hFE= 5000( Min.) @(IC= 5A, VCE=

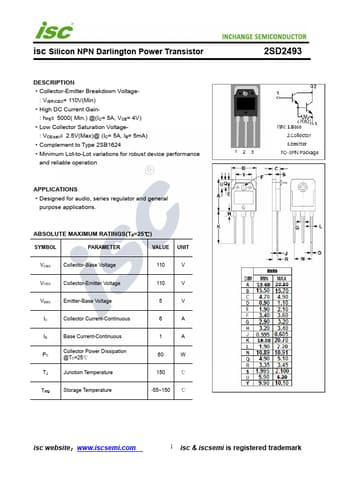

  • Datasheet Preview: 2SD2493 📥 Download PDF (222.22kb)
    Page 2 of 2SD2493

    2SD2493 Application

    • Applications
    • Designed for audio, series regulator and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER V
