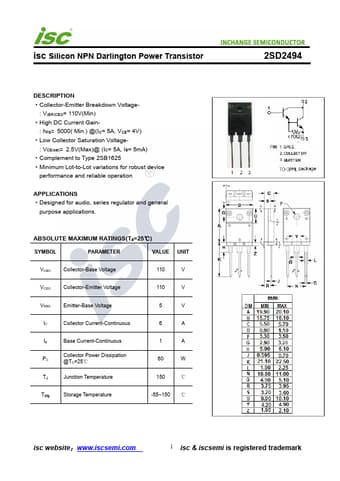

2SD2494 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD2494

Manufacturer:

INCHANGE

File Size:

203.32kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 110V(Min)

High DC Current Gain- : hFE= 5000( Min.) @(IC= 5A, VCE=

2SD2494 Application

• Applications
• Designed for audio, series regulator and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER V
