2SD725

SILICON POWER TRANSISTOR

SavantIC

2SD725 General Description

*With TO-3 package
*High voltage ,high speed
*Low collector saturation voltage APPLICATIONS
*For high voltage,power switching and TV horizontal output applications PINNING(see fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute max.

2SD725 Datasheet (134.90 KB)

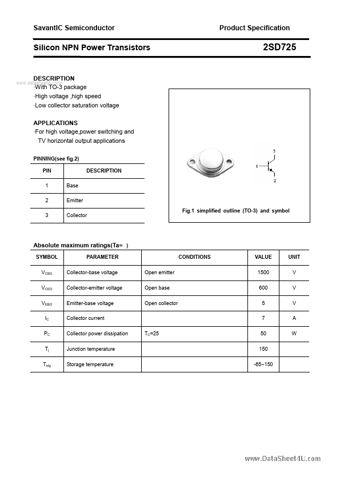

2SD725 Datasheet Preview — Preview of 2SD725 PDF

Datasheet Details

Part number:

2SD725

Manufacturer:

SavantIC

File Size:

134.90 KB

Description:

Silicon power transistor.
