BD142 Datasheet - SavantIC

BD142 SILICON POWER TRANSISTOR

*With TO-3 package *Low collector saturation voltage *High dissipation rating APPLICATIONS *LF large signal power amplification *Intended for a wide variety of intermediate power applications. *Suited for use in audio and inverter circuits at 12V PINNING (See Fig.2) PIN 1 2 3.

BD142_SavantIC.pdf

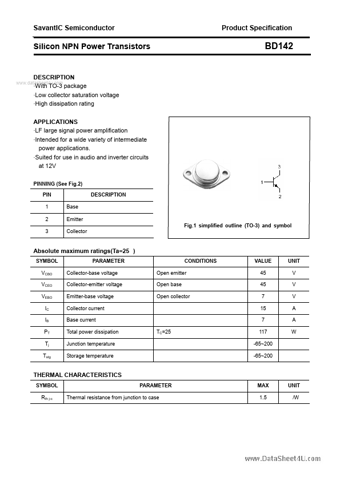

Preview of BD142 PDF
BD142 Datasheet Preview Page 2 BD142 Datasheet Preview Page 3

Datasheet Details

Part number:

BD142

Manufacturer:

SavantIC

File Size:

135.71 KB

Description:

Silicon power transistor.
