BD145 - NPN Transistor

Product Overview

📥 Download Datasheet

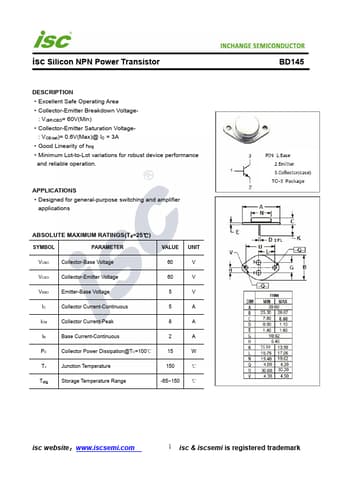

Datasheet preview – BD145

Datasheet Details

Part number BD145
Manufacturer INCHANGE
File Size 175.07 KB
Description NPN Transistor
Datasheet download datasheet BD145 Datasheet
Additional preview pages of the BD145 datasheet.

Product details

Description

Excellent Safe Operating Area Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min) Collector-Emitter Saturation Voltage- : VCE(sat)= 0.6V(Max)@ IC = 3A Good Linearity of hFE Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Designed for general-purpose switching and amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter
