C5296 Datasheet, transistors equivalent, SavantIC

PDF File Details

Part number:

C5296

Manufacturer:

SavantIC

File Size:

185.86kb

Download:

📄 Datasheet

Description:

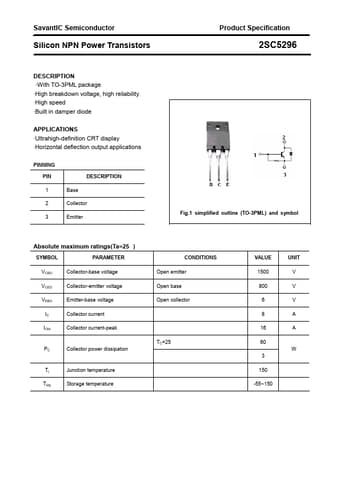

Silicon npn power transistors.

With TO-3PML package

High breakdown voltage, high reliability.

High speed

Built in damper diode

C5296 Application

• Applications
• Ultrahigh-definition CRT display
• Horizontal deflection output applications PINNING PIN 1 2 3 DESCRIPTION Base Colle
