MA5-419-500, MA5-419 Datasheet - Schneider

MA5-419-500 Two-Position Actuators General Instructions

MAx-305 & MAx-318 Series MAx-405 Through MAx-419 Series Two-Position Actuators General Instructions Application For two-position operation of dampers, valves, and other equipment which require the return to normal position upon power interruption. Hazardous location models offer a sturdy cast aluminum case with bolted cover. They have two 3/4" pipe tapped openings for joints with rigid metal conduit. All wiring is brought out to separate terminals for ease of installation. These factory enclosu.

MA5-419-500 Features

* Compatible with most SPST control devices

* Spring return

* 24, 120, 208, and 240 Vac models

* Actuators with part number suffix "-500" are equipped with SPDT auxiliary switch

* Actuator has a rugged die cast aluminum housing with two 1/2” conduit openings

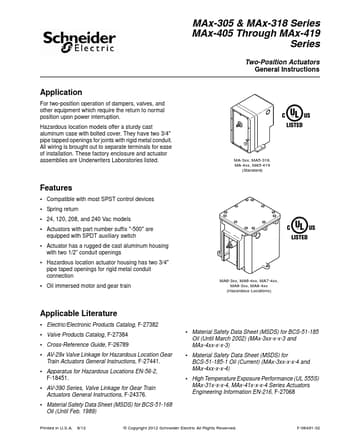

MA5-419-Schneider.pdf

MA5-419-500 Datasheet Preview — This datasheet PDF includes multiple part numbers: MA5-419-500, MA5-419. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MA5-419-500, MA5-419

Manufacturer:

Schneider

File Size:

233.21 KB

Description:

Two-position actuators general instructions.

Note:

This datasheet PDF includes multiple part numbers: MA5-419-500, MA5-419.
Please refer to the document for exact specifications by model.
