MA5173-AE - Power Filter Inductors

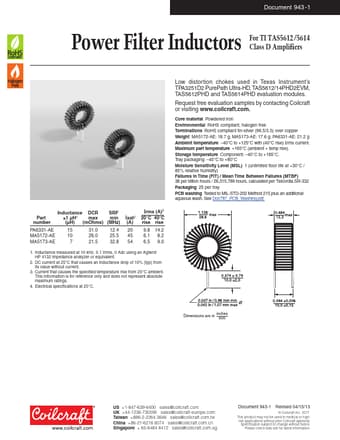

Document 943 -1 Power Filter Inductors ForTITAS5612/5614 Class D Amplifiers Inductance DCR SRF Irms (A)3 Part ±1 µH1 max min Isat2 20°C 40°C number (µH) (mOhms) (MHz) (A) rise rise PA6331-AE 15 MA5172-AE 10 MA5173-AE 7 31.0 12.4 20 9.8 14.2 26.0 25.5 45 6.1 8.2 21.5 32.8 54 6.5 9.0 1. Inductance measured at 10 kHz, 0.1 Vrms, 0 Adc using an Agilent/ HP 4132 impedance analyzer or equivalent. 2. DC current at 25°C that causes an inductance drop of .

MA5172-AE-Coilcraft.pdf
