MA5157-AL Datasheet - Coilcraft

MA5157-AL Flyback Transformer

Document 974 Flyback Transformer forNXPSemiconductor SSL2103 SMPS Controller Developed for NXP Semiconductor for use with the SSL2103 SMPS Controller for dimmable LED lighting Designed to operate at 100 kHz with 120 Vac input 2000 Vrms, one minute isolation from primary and auxiliary to secondary; 500 Vrms, one minute isolation from primary to auxiliary Core material Ferrite Terminations  RoHS compliant tin-silver over tin over copper over steel. Other terminati.

MA5157-AL Datasheet (180.86 KB)

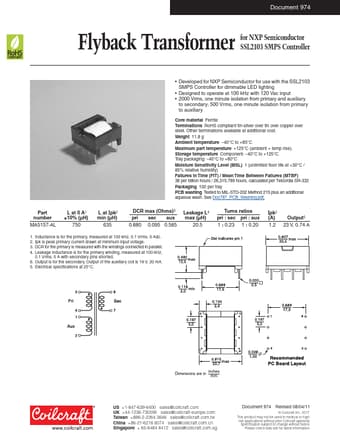

Preview of MA5157-AL PDF

Datasheet Details

Part number:

MA5157-AL

Manufacturer:

Coilcraft

File Size:

180.86 KB

Description:

Flyback transformer.
