MA5401-AE Flyback/Buck Transformer

MA5401-AE Description

Document 924B-1 Flyback/ Buck Transformer for TI UCC25230 Switching Converter The MA5401-AE was developed for use with the Texas Instruments UCC25230.

MA5401-AE Applications

* It provides tight coupling (k > 0.99), high inductance and excellent current handling in a rugged, low cost part. SHS + D1 + 0.189 ±0.003 4,80 ±0,08 14 0.189 ±0.003 XXX X 4,80 ±0,08 23 Dot indicates pin 1 Dash number Internal code 0.114 ±0.004 2,90 ±0,10 Recommended Land Pattern 0.138 3,50

📥 Download Datasheet

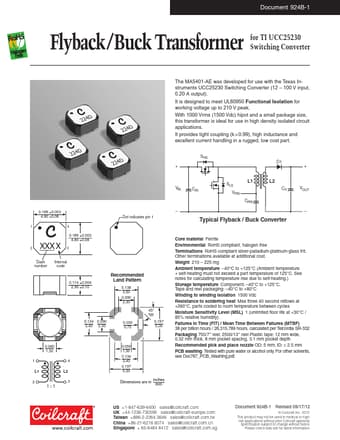

Preview of MA5401-AE PDF
datasheet Preview Page 2

Datasheet Details

Part number
MA5401-AE
Manufacturer
Coilcraft
File Size
162.20 KB
Datasheet
MA5401-AE-Coilcraft.pdf
Description
Flyback/Buck Transformer
